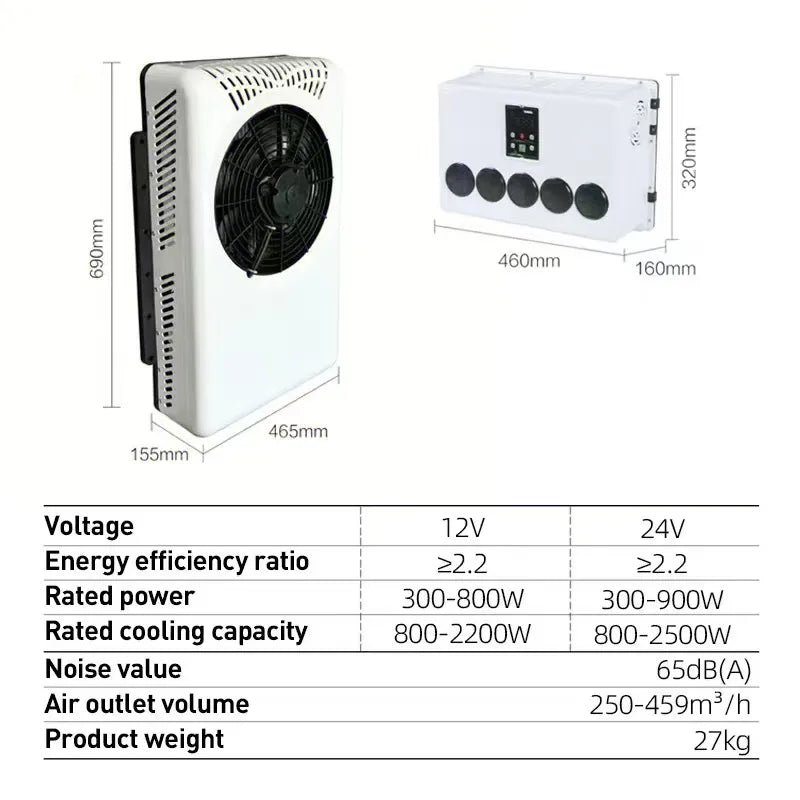

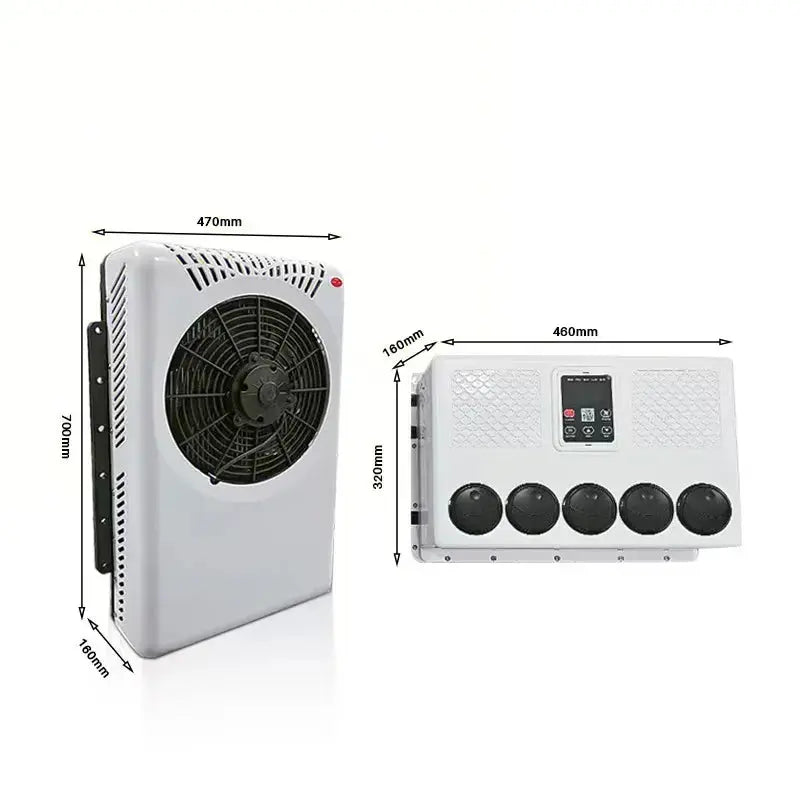

XH H5, 9000 BTU Split Truck Air Conditioner – 12V/24V No-Idle Parking AC for Trucks, RVs & Vans

Cooling: 9000 BTU

Kind Tips

 . This page shows product price only.

 .  Default shipping method: Sea freight (DDP）.

 .  Final cost varies by destination and shipping method.

 .  Contact us on WhatsApp for a customized quotation including freight and alternative shipping options.

🌟 Key Features

✔ Compact Five-Vent Indoor Unit

Space-saving five-vent design delivers strong airflow and fast cooling. Perfect for tight cabins Or buyers who don't want to take up too much space

✔ No-Idle Cooling — Save Fuel & Protect Your Engine

Stay cool without burning diesel. Reduce engine wear and lower long-term fuel costs.

✔ Strong Cooling Performance — 9000 BTU

Engineered for high-temperature environments, desert climates, and long summer drives.

✔ 12V / 24V Dual Voltage Compatibility

Suitable for most:

.  Trucks

.  Vans

.  RVs

.  Heavy-duty & industrial equipment

✔ Ultra-Quiet Operation

Low-noise airflow system ensures a peaceful rest — perfect for sleeper cabs and overnight breaks.

✔ Durable, Weather-Resistant Construction

Designed for long-term outdoor use in extreme heat, dust, humidity, and rough environments.

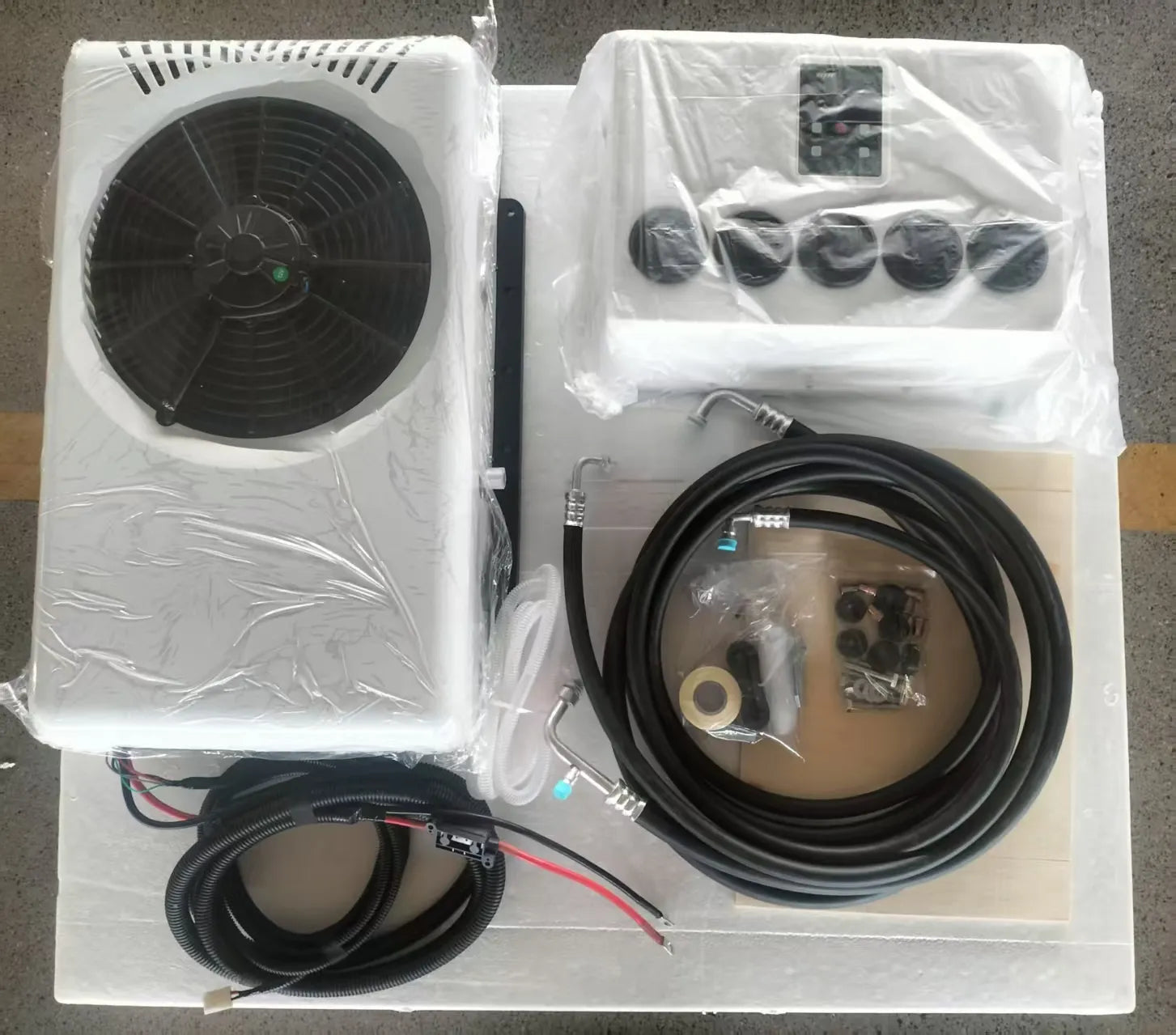

📦 What’s Included

. XH indoor and outdoor units

. Wiring & installation kit

. Mounting accessories

. mounting plate

. remote control

. User manual

. 12-month warranty

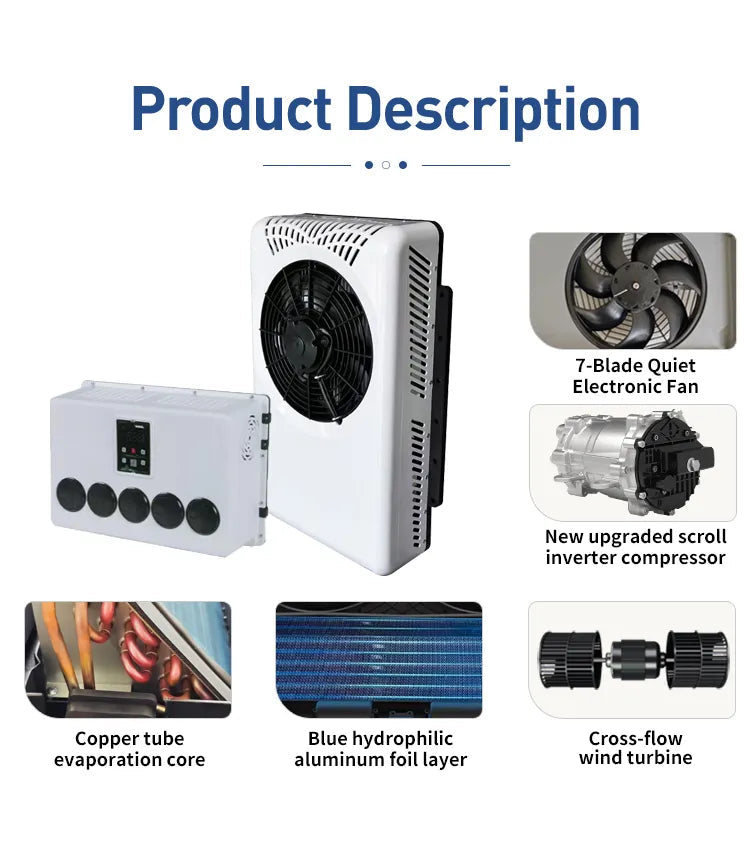

🔧 Core Technologies

Patented DC Inverter Scroll Compressor

.  Independently developed & patented

.  Up to 20,000-hour lifespan

.  Strong cooling with ultra-low energy consumption

Rapid Cooling System

.  Large cooling capacity with 450 m³/h high airflow

.  Patented rapid-cooling design drops cabin temperature quickly

Energy-Saving Mode

 Once the set temperature is reached, the AC runs at low frequency for minimal power consumption and longer battery life.

--------------------------------------------------------------------------------------------

Smart Protection & Comfort

Intelligent Voltage Protection

Prevents low/high voltage damage, current overload, and battery issues.

Multiple Cooling Modes

Quiet · Standard · Powerful · Exhaust · Sleep Mode

🔧 Installation Precautions

. Connect the red power cable to the battery positive, and black to negative.

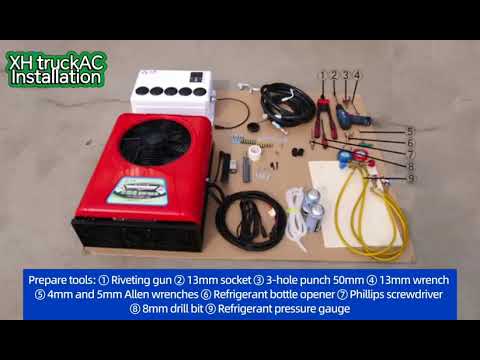

Click to view the installation video

----------------------------------------------------------

DC Air Conditioner FAQ

1. Where should the air conditioner power cable be connected?

The air conditioner should be connected directly to the vehicle’s battery, using DC power.
Please do not connect it to the cigarette lighter, as it cannot support the required current.

2. How much power does the air conditioner consume?

Our air conditioner uses a self-developed patented inverter compressor, designed for high efficiency and low energy consumption.

  Power consumption: 0.3–0.5 kWh per hour under high summer temperatures

  Battery requirement: A 100Ah battery is sufficient for operation

3. I’m not sure which model is right for me.

We recommend reading our comprehensive Parking Air Conditioner Buying Guide, which helps you choose the most suitable model based on your vehicle type and usage needs.

“Have questions? Visit our Parking Air Conditioner /DC Air Conditioner FAQ.”
